HS-PVM310 Palm Vein Module

جزئیات محصول

Place of Origin: China

نام تجاری: Homsh

گواهی: ISO9001

Model Number: HS-PVM310

شرایط پرداخت و حمل و نقل

Minimum Order Quantity: 50

قیمت: Negotaible

Payment Terms: T/T

بهترین قیمت رو بدست بیار
برجسته کردن:
HS-PVM310 Palm Vein Module

Product Features:

Ø  Non-contact recognition, safe and hygienic

Ø  Based on hemoglobin absorption infrared imaging technology, ultra-high security

Ø  Captures subcutaneous vein features of the palm, protecting personal biometric privacy information

Ø  0.2S ultra-fast recognition, rapid experience

Ø  Supports 360° palm rotation for a superior experience

Ø  Intelligent AI recognition engine, fail-safe

Ø  12-25cm ultra-wide effective recognition distance

Ø  Palm visualization guidance, convenient and fast

Ø  USB2.0 interface, strong compatibility

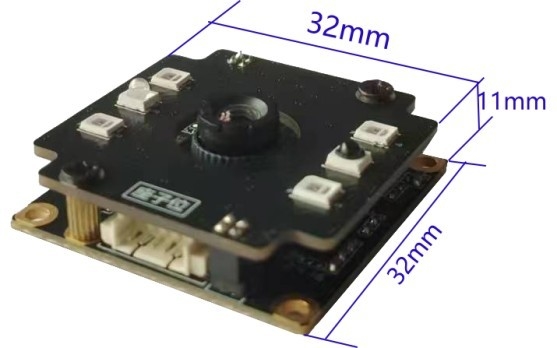

Ø  Designed with a compact size of 32*32*11mm, highly adaptable

Ø  supports Windows/Linux/Android system mainboard

Ø  Provides interface calling documentation for easy secondary development


Application Scenarios

Ø  Various hardware products that require the integration of palm vein recognition modules

Ø  Access control attendance machines, payment machines, passageway turnstiles, lockers, gun cabinets, equipment cabinets, and other non-contact identity recognition scenarios


Technical Specifications

No.

Specification Item

Description

1

Working Mode

Palm vein (1:N recognition)

Palm vein (1:1 verification)

2

Recognition Speed

1:N mode:<1S (N=5,000 ID)

1:1 mode:<0.2S

Note: This indicator is based on the standard software and hardware environment of this product, calculated based on single-hand collection per person, and the actual speed is related to the performance of the upper computer motherboard.

3

Recognition Rate

False Rejection Rate (FRR)<0.01%

False Acceptance Rate (FAR)<0.001%

Note: This data is from laboratory testing, and actual data may vary depending on environmental factors of the usage scenario.

4

Recognition Angle

Horizontal Rotation Angle: 360°

Horizontal Tilt Angle: ±20°

5

Recognition Distance

Non-contact

Effective recognition distance 120mm-250mm

Note: Based on standard palm size measurement, different environments and palm sizes may result in differences in effective recognition distance.

6

User ID Number

Recommended not to exceed 10,000 ID (single hand mode)

7

Image Type

Near-infrared grayscale image

8

Distortion Rate

1%

9

Communication Interface

USB2.0 (5P 1.25mm pitch)

10

System Support

Windows/Android/linux(ubuntu debian)

11

Power Supply Requirements

5V±3%/500mA

12

Application Scenarios

Indoor, avoid sunlight exposure, and avoid being directly opposite to doors and windows at a close distance.

13

Applicable Population

Recommended for people over 12 years old

14

Lighting Environment Requirements

Natural light (sunlight)

Registration:<2000Lux, Recognition:<3000Lux

Fluorescent light

Registration:<2000Lux, Recognition:<3000Lux

Incandescent/Halogen light

Registration:<500Lux, Recognition:<700Lux

15

Operating Temperature

-10℃~60 (ambient temperature)

16

Operating Humidity

Relative humidity 10%~95%, no condensation

17

Dimensions

32*32*11mm (length*width*height) (bare board)

18

Third-party Integration

Provides interface calling documentation for third-party system
