جزئیات محصول
Place of Origin: China
نام تجاری: Homsh
گواهی: ISO9001

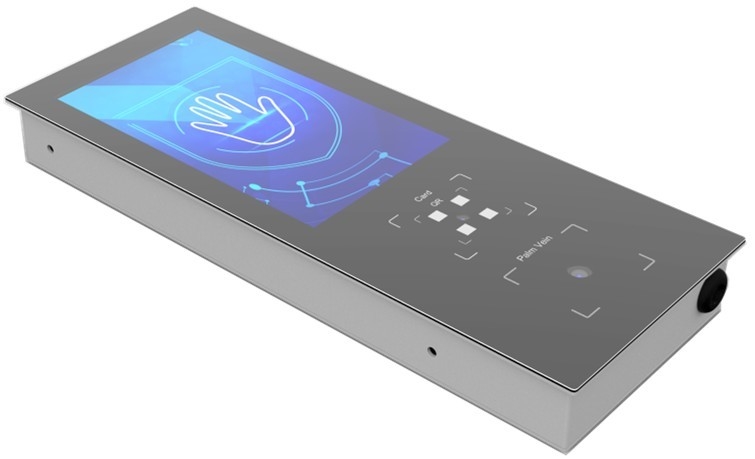

Model Number: HS-PVT335L
شرایط پرداخت و حمل و نقل
Minimum Order Quantity: 50
قیمت: Negotaible
Payment Terms: T/T
Installation Method: Embedded
Application Scenarios: Access gates, elevator control, lockers, vending machines, smart doors, and other scenarios requiring embedded devices.
Product Features:
1. Built-in third-generation palm vein recognition algorithm with liveness detection for security and reliability.
2. Supports palm vein image visualization for an enhanced user experience.
3. Ultra-fast recognition: <0.5S (5000 ID, upgradable to 10000 ID).
4. High accuracy: False Acceptance Rate (FAR) <0.001%.
5. Supports 360° palm rotation for a better experience.
6. Supports WiFi and Bluetooth .
7. Supports three recognition methods: palm vein, QR code, and NFC.
8. Strong expandability with interfaces including serial port (RS485 or RS232), relay, Wiegand 26/34 output.
9. Android 13 system with provided API and SDK for secondary development to adapt to more scenarios.
10. Compact dimensions: 215*82*23mm (L*W*H), saving space.
11. Cutout size: 210mm*77mm, suitable for most device installations.
Product Specifications Table:
|
Category |
Sub-item |
Parameters |
|
Palm Vein Module |
Recognition Speed |
1:N mode: <0.5S (N=5000 ID) 1:1 mode: <0.2S |
|
Recognition Rate |
False Rejection Rate (FRR) <0.01% False Acceptance Rate (FAR) <0.001% Note: Lab test data; actual performance may vary based on environmental factors. |
|
|
Recognition Range |
Non-contact Effective range: 120mm-250mm Note: Measured based on standard palm size; distance may vary due to environment or palm size. |
|
|
Recognition Angle |
Horizontal rotation: 360° Horizontal tilt: ±20° |
|
|
User ID Capacity |
Recommended ≤5000 ID, upgradable to 10000 ID (single-hand mode). |
|
|
QR Code |
Read Speed |
3 reads/second |
|
Supported Codes |
2D: QR Code 1D: Code128/Code 39/Code 32/EAN/UPC |
|
|
Read Depth |
QR Code: 5cm-38cm (50mil paper code) |
|
|
NFC |
Protocol Standard |
ISO14443A, ISO14443B |
|
Frequency |
13.56MHz |
|
|
Supported Cards |
Mifare1, S50, S70, or compatible cards (Desfire) |
|
|
Read Speed |
≤50ms |
|
|
Display |
Size |
5-inch |
|
Resolution |
1280*720, brightness 400cd |
|
|
Processor |
CPU |
Quad-core ARM Cortex-A53 up to 2.0GHz |
|
RAM |
DDR3 |
2GB |
|
Storage |
Flash |
8GB |
|
OS |
Android |
Android 13 |
|
Network |
Ethernet |
100Mbps interface |
|
WiFi/Bluetooth |
Supports Wi-Fi 802.11b/g/n protocol (can also support WiFi6 or 5G WiFi). |
|
|
Interfaces |
Wiegand |
1 Wiegand output (supports 26/34 protocol) |
|
Relay |
1 relay interface |
|
|
Serial Port |
1 RS485/RS232 (selectable) |
|
|
USB |
1 USB 2.0 port |
|
|
Network |
1 RJ45 port |
|
|
Power |
1 DC12V input |
|
|
Environment |
Natural Light |
Registration: <2000Lux, Recognition: <3000Lux |
|
Fluorescent Light |
Registration: <2000Lux, Recognition: <3000Lux |
|
|
Incandescent/Halogen |
Registration: <500Lux, Recognition: <700Lux |
|
|
General |
Usage Scenario |
Indoor use (avoid direct sunlight) |
|
Target Users |
Recommended for ages 12+ |
|
|
Housing Material |
Metal + glass |
|
|
Installation |
Embedded |
|
|
Operating Temp. |
-10°C to 60°C |
|
|
Operating Humidity |
10%-90% |
|
|
Dimensions |
215*82*23mm (L*W*T) |
|
|
Cutout Size |
210mm*77mm |
Port Descriptions:
|
No. |
Port |
Description |
|
1 |
DC |
12V input port |
|
2 |
USB |
USB 2.0 |
|
3 |
LAN |
Ethernet port |
|
4 |
Wiegand Input |
WG0, WG1, GND |
|
5 |
COM Port |
A: RX; B: TX |
|
6 |
Switch Signal |
NO (Normally Open), NC (Normally Closed), COM (Common), COM1 (Manual Open) |
Product Dimensions Diagram:
Embedded Installation Reference:
